Product Name

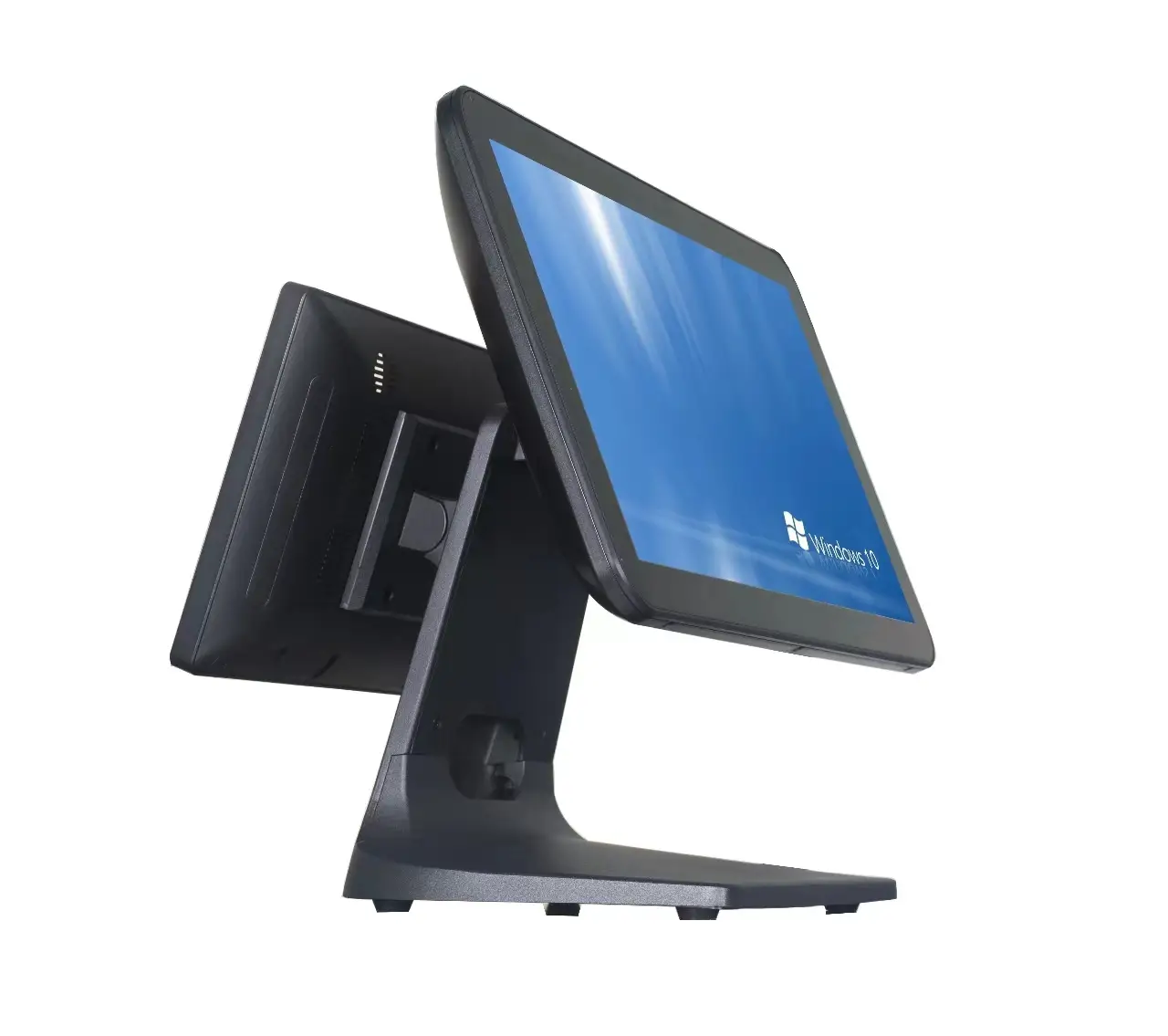

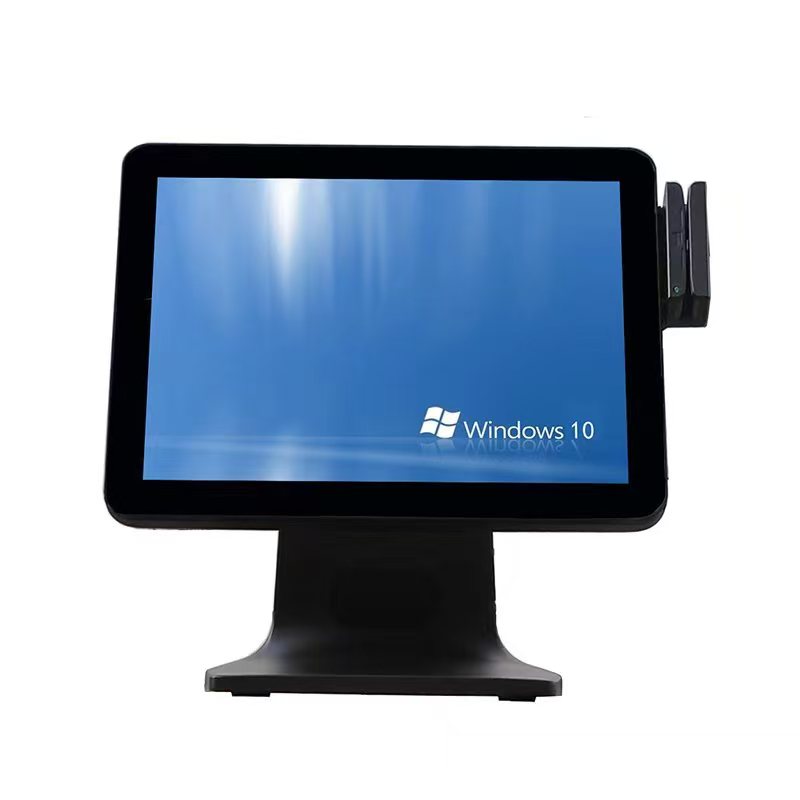

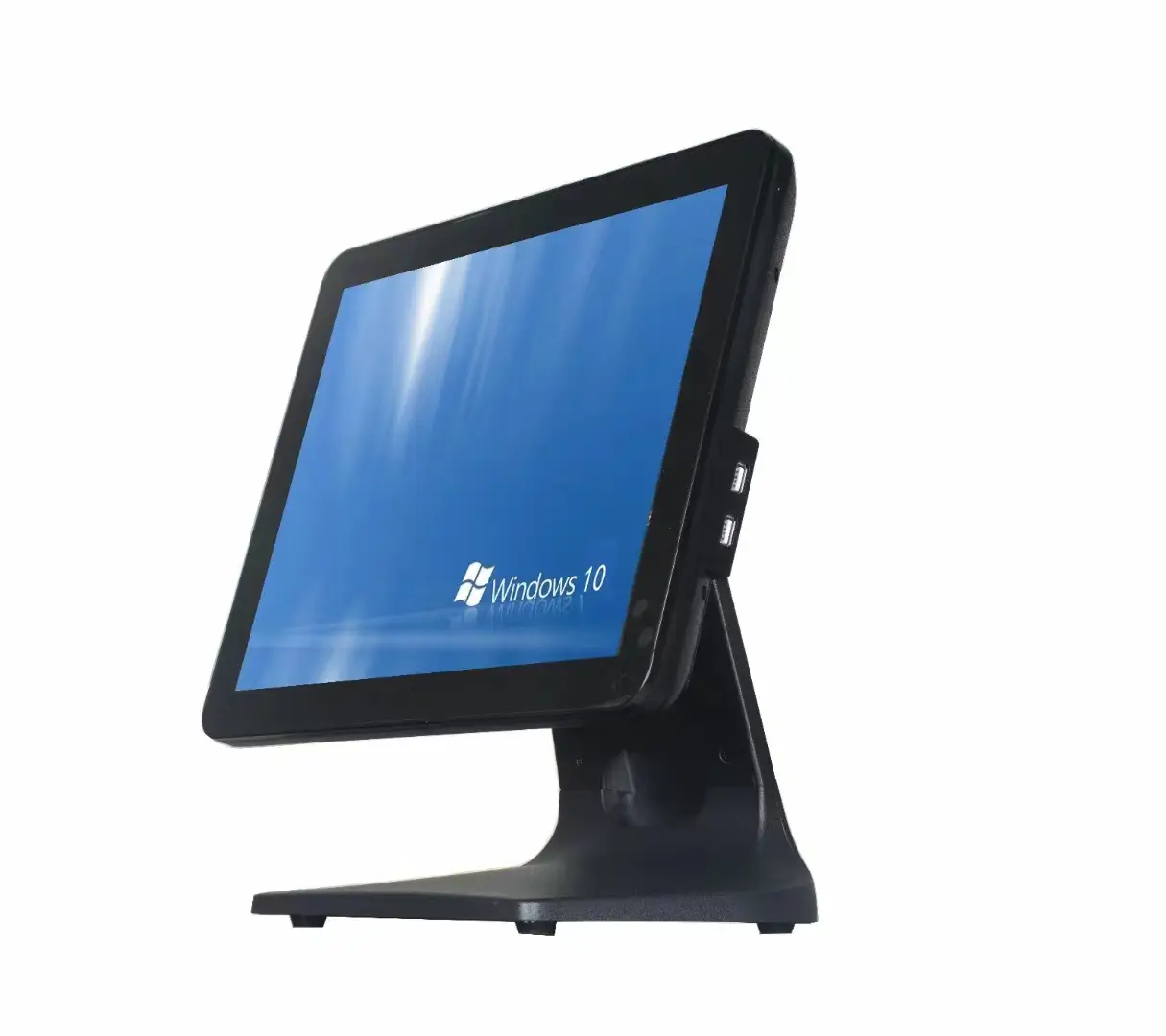

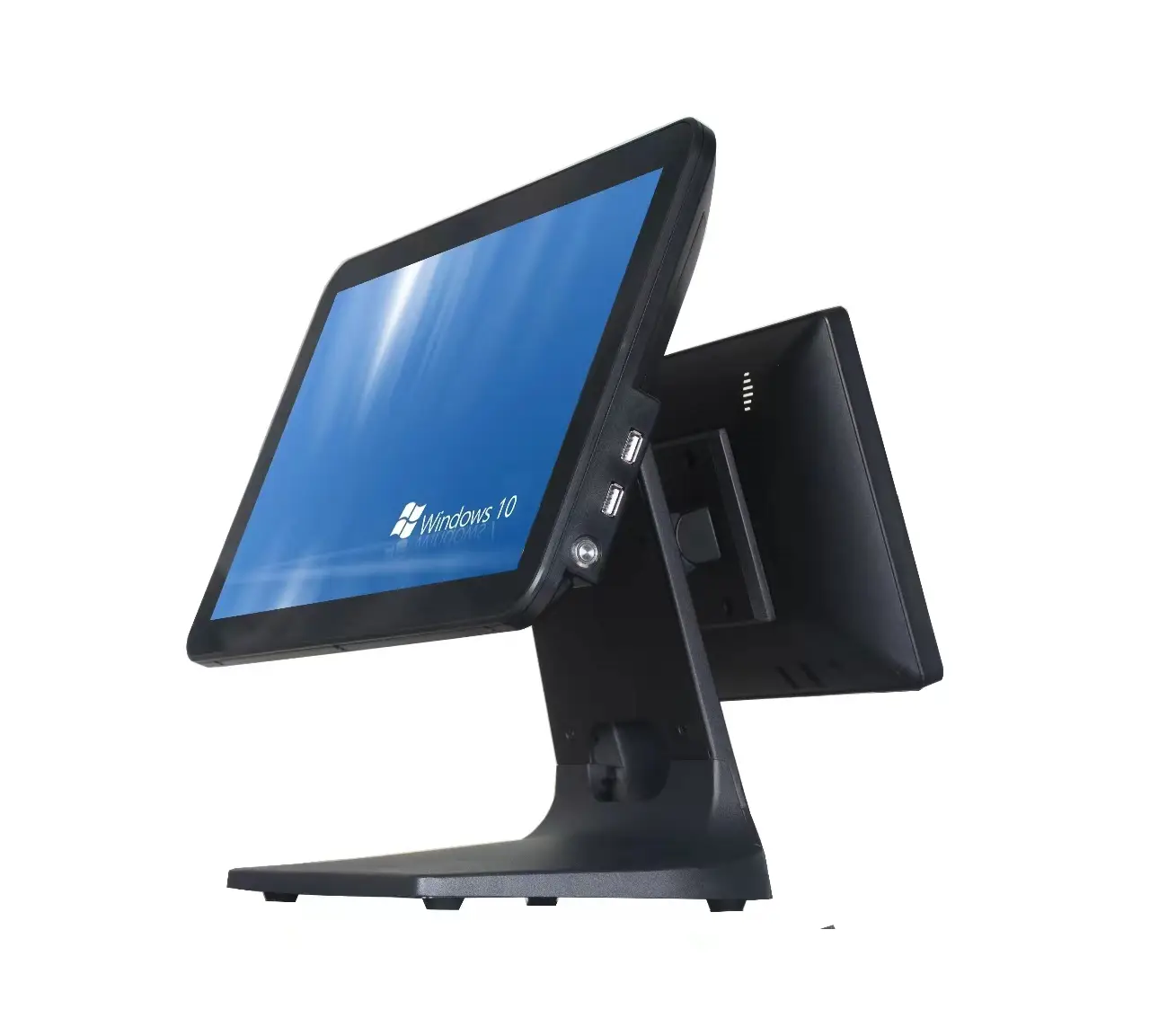

Model-ZM Touch POS Machine

Display Options

Single or Dual Screen
Dual Screen Combinations: 15.6″&15.6″; 15.6″&11.6″; 11.6″&11.6″; 15″&15″

Panel Specifications

– Panel Typea-Si TFT-LCD, LCM

– Aspect Ratio16:9

– Resolution1366(RGB)×768 (WXGA), 100PPI

– Active Area344.232mm(W) × 193.536mm(H)

– Brightness220 cd/m² (Typ.)

– Touch ScreenCapacitive Touchscreen, 10-point multi-touch

Hardware

– RAM4GB/8GB/16GB (Optional)

– SSD32GB/64GB/128GB/256GB (Optional)

– ProcessorIntel Core i3/i5/i7 (Optional)

– WirelessWiFi: IEEE 802.11 a/b/g/ac
Bluetooth: 4.2 (Mini PCI-E)

Operating SystemWindows 7/10/11 (Optional)

Interfaces

– Standard Ports

DC Power , VGA, LAN, Line Out, Mic In, ×1

USB 2.0 ×4

– Extension Ports USB 2.0 ×2

Power Supply

– Single Screen100-240V 50-60Hz; 12V 5A

– Dual Screen100-240V 50-60Hz; 12V 7A
