| Specification | |||||
| General | |||||
| Series | Water-proof and Flat screen | ||||
| LCD Type | 15” Active matrix TFT-LCD | ||||
| Video Input | VGA | ||||
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | ||||
| Power Supply | Type: External brick | ||||
| Input (line) voltage: 100-240 VAC, 50-60 Hz | |||||
| Output voltage/current: 12 volts at 4 amps max | |||||
| Mount Interface | 1)VESA 75mm and 100mm | ||||
| 2)Mount bracket, horizontal or vertical | |||||
| LCD Specification | |||||
| Active Area(mm) | 304*228 mm (H×V) | ||||
| Resolution | 1024*768@60Hz | ||||
| Dot Pitch(mm) | 0.17925 (H) x 0.17925 (V) | ||||
| Nominal Input Voltage VDD | +3.3(Typ) | ||||
| Viewing angle (v/h) | 85°/85°(CR>10) | ||||
| Contrast | 1000:01:00 | ||||
| Luminance(cd/m2) | 250 | ||||
| Response Time(Rising) | 5MS | ||||
| Support Color | 16.2M colors | ||||
| Backlight MTBF(hr) | 15000(Min) | ||||
| Touchscreen Specification | |||||
| Type | Projected Capacitive touch screen | ||||
| Multi touch | 10points touch | ||||
| Touch Life Cycle | 10 millions | ||||
| Touch Response time | 5ms | ||||
| Touch System Interface | USB interface | ||||
| Power consumption | +5V@80mA | ||||
| External AC Power Adapter | |||||
| Output | DC 12V /3A | ||||
| Input | 100-240 VAC, 50-60 Hz UL | ||||
| MTBF | 50000 hr at 25°C | ||||
| Environment | |||||
| Operating Temp. | 0～50°C | ||||
| Storage Temp. | -20～60°C | ||||
| Operating RH: | 20%～80% | ||||
| Storage RH: | 10%～90% | ||||
| Components | |||||
| USB Cable 180cm*1 Pcs, | |||||
| VGA Cable 180cm*1Pcs, | |||||
| Power Cord with | Switching Adapter *1 Pcs, | ||||

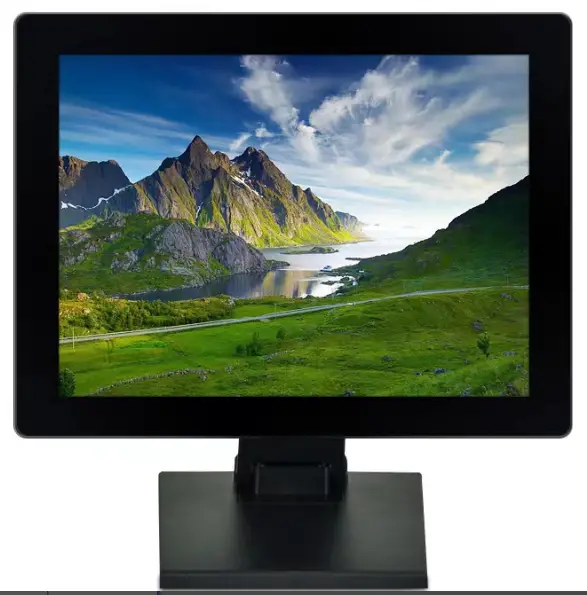

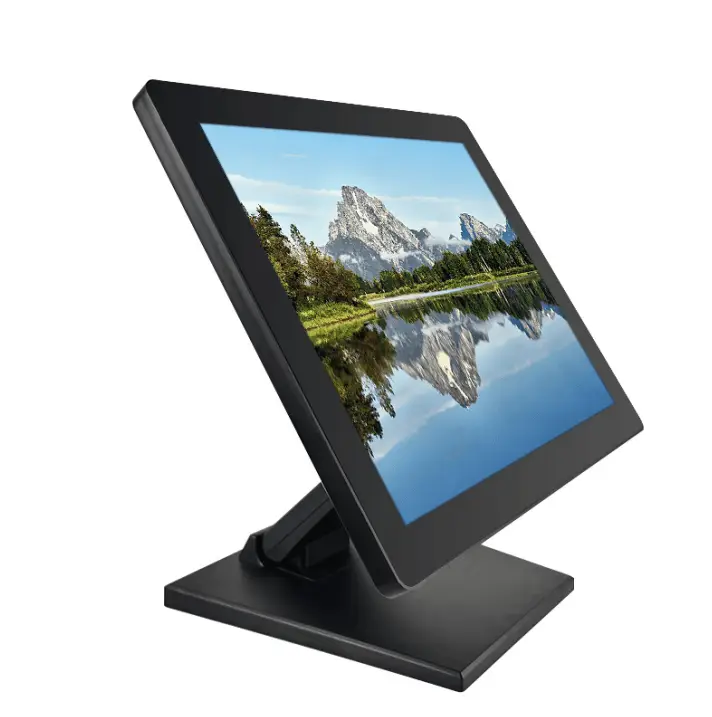

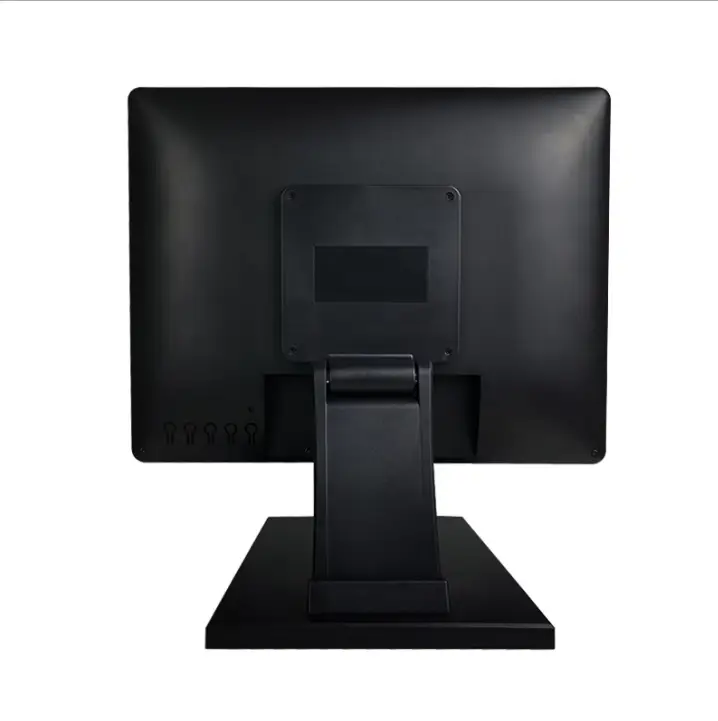

Touch Monitor
$85.00
•12”/15”/18.5” Touch Monitor available.
•Available with regular fixed base or folding metal base.
•Water-proof and Flat screen,Active matrix TFT-LCD
